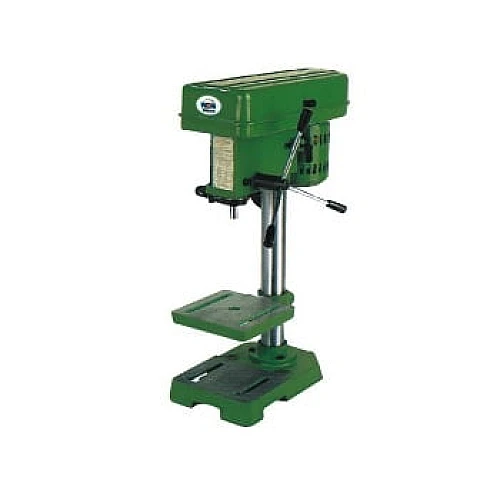

ZHX13 180w Light Drilling Machine Xest Ling

Please check the stock status before placing an order.

PRODUCT DESCRIPTION

XEST LING Light Drilling Machine

Model: ZHX-13

Maximum drilling diameter(mm): 13

Column diameter(mm): 48

Spindle travel(mm): 50

Spindle center to column surface distance(mm): 103

Maximum spindle nose to table distance(mm): 220

Spindle nose to base table maximum distance(mm): 300

Spindle taper: B16

Spindle speed range(r/min): 515 to 2580

Spindle speeds: 5

Working table size(mm): 160 × 160

Base Dimensions(mm)(mm): 280 × 180

Overall height(mm): 580

Motor(W): 180 OR 250

GW / NW(kg): 21/19

Packing size(cm): 46 × 33 × 23
