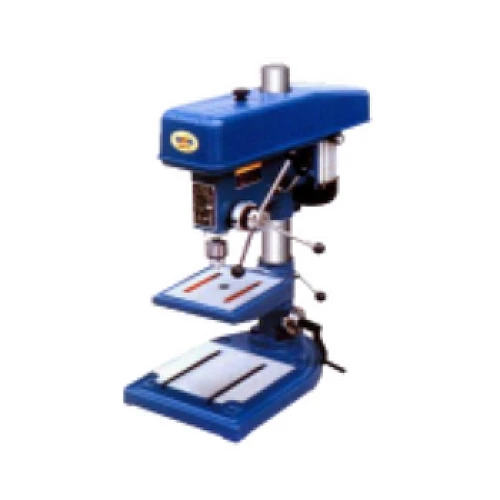

Z516 550w Industrial Bench Drilling Machine Xest Ling

Please check the stock status before placing an order.

Features

Both spindle head, column and base using high quality cast iron, strong and everlasting. High precision with excellent feature, widely use at instrument and camera area.

PRODUCT DESCRIPTION

XEST LING Industrial Bench Drilling Machine

Model: Z516

Maximum drilling diameter(mm): 16

Diameter of column(mm): 70

Spindle travel(mm): 100

Distance spindle axis to column generating line(mm): 193

Maximum distance spindle nose to table(mm): 332

Max distance spindle nose to base(mm): 556

Spindle taper: MT2

Spindle speed range(r/min): 480～4100

Spindle speeds series: 5

Dimension of work table surface(mm): 265×265

Dimension of base(mm): 528×360

Overall height(mm): 1037

Main motor(kW): 550/1

GW/NW(kg): 108/90

Packing size(cm): 77×42×94
