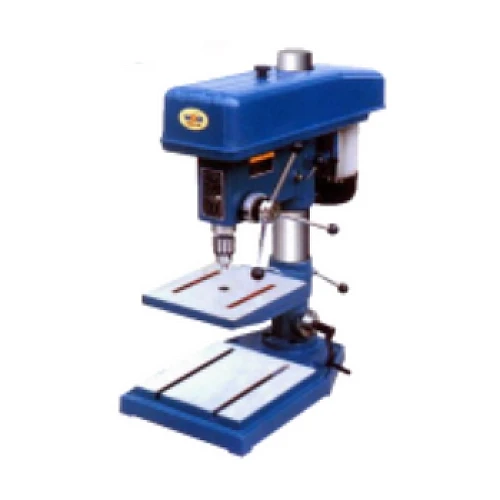

Z4125 750w Industrial Bench Drilling Machine Xest Ling

Please check the stock status before placing an order.

Features

Both spindle head, worktable, column and base using high quality cast iron, strong and ever lasting. High precision with excellent feature, widely used at all kinds of fields such as instrument industry, machinery producing and repairing.

PRODUCT DESCRIPTION

XEST LING Industrial Bench Drilling Machine

Model: Z4125

Max.Drilling capacity(mm): 25

Diameter of column(mm): 85

Spindle travel(mm): 125

Distance spindle axis to column generating line(mm): 240

Max. distance spindle nose to table(mm): 332

Max.Distance spindle nose to base (mm): 630

Spindle taper: MT3

Spindle speeds range(r/min): 365~3150

Spindle speeds series: 5

Dimension of worktable surface(mm): 280*300

Dimension of base(mm): 590*375

Overall height(mm): 1127

Main motor(W): 750/1

G.W/N.W(kg): 165/140

Packing dimension(cm): 82*48*102
