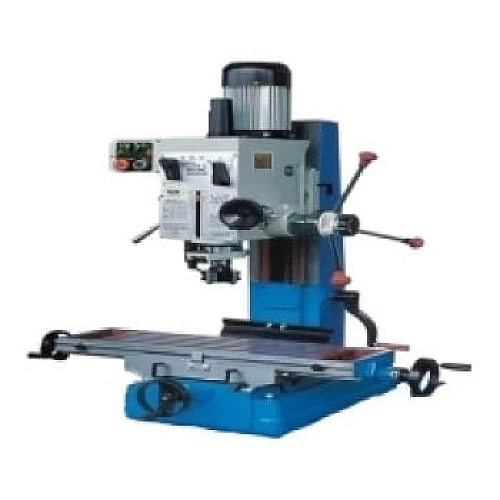

ZX7045 750w 1 Phase Bench Drilling Milling Machine Xest Ling

Please check the stock status before placing an order.

PRODUCT DESCRIPTION

Xest Ling Bench Drilling & Milling Machine

Model: ZX-7045

Max.Drilling capacity(mm): 45

Width of face milling(mm): 80

Diameter of vertical milling(mm): 28

Spindle travel(mm): 120

Distance spindle axis to column generating line(mm): 260

Max.distance spindle nose to table(mm): 475

Spindle taper: MT4

Spindle speeds range(r/min): 95~1600

Main motor(W): 750, 1 phase

Spindle speeds series: 6

Dimension of worktable surface(mm): Standard 730×210

Table travel(mm): Standard 450×170

Overall height(mm): 1050

G.W/N.W(kg): 318/278

Packing dimension(cm): 86*74*116

Accessories:

• Std accessories: Drill chuck, Cutter, Taper sleeve, Arbor, Drift, Wrench, Drawbar
• Special accessories: Milling chuck, Angle vice, Safety guard
