ZX32HC 1500w 3 Phase Bench Drilling Milling Machine Xest Ling

Please check the stock status before placing an order.

Features

• The machine adopt belt driving and the noisy low, machine can drill,enlarge ream and milling.
• The machine has 12 series speed variable features, which can be widely fit for processing to kinds of common hard and soft material.
• The head and table can rise and down freely, the head could also move reverse, enlarge the range of process.
• The main body is stable and firm, effective working area of table is 585 x 190mm.
• Std accessories: Drill chuck ф16mm, Cutter ф80mm, Taper sleeve, Arbor, Drift
• Special accessories: Milling chuck, Angle vice, Safety guard

PRODUCT DESCRIPTION

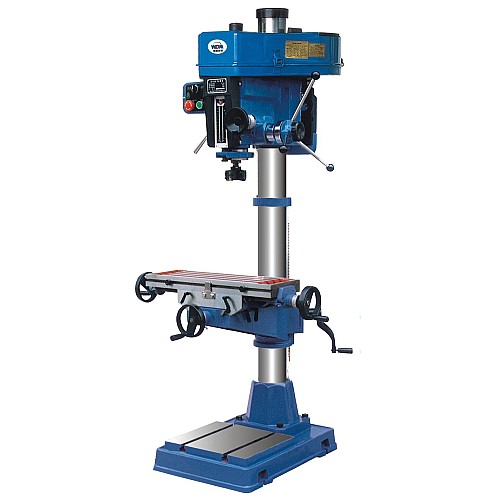

Xest Ling Bench Drilling & Milling Machine

Model: ZX-32HC

Max.Drilling capacity(mm): 31.5

Width of face milling(mm): 80

Diameter of vertical milling(mm): 22

Diameter of column(mm): 115

Spindle travel(mm): 130

Distance spindle axis to column generating line(mm): 202

Max.distance spindle nose to table(mm): 745

Max.distance spindle nose to base(mm): 1245/1270

Spindle taper: MT3

Spindle speeds range(r/min): 100~2150

Main motor(W): 1500, 3 phase

Spindle speeds series: 12

Dimension of worktable surface(mm): 585*190

Table travel(mm): 370*140*515

Dimension of base(mm): 635*460

Overall height(mm): 1760

G.W/N.W(kg): 345/305

Packing dimension(cm): 80*75*186
