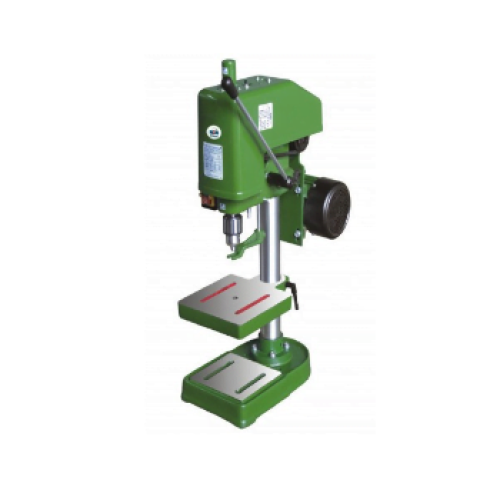

SWJ12 370w 1 Phase Bench Drill Tapping Machine Xest Ling

Please check the stock status before placing an order.

Features

• Simple structure and easy operation.
• It uses machinery friction clutch make which prolong the life of motor working stable and low noise and also has the over loading protection function.
• It can tapping continuously widely used at all kinds of machinery instrument, hardware tools and so on.
• Standard accessories= Drill chuck

PRODUCT DESCRIPTION

Model: SWJ-12

Max. Tapping Capacity(mm): M12/M8

Dia. of column(mm): 60

Spindle travel(mm): 40

Distance spindle axis to column generating line(mm): 127

Max. Distance spindle nose to workable(mm): 240

Max. Distance spindle nose to base(mm): 370

Spindle taper: B16

Spindle speeds range(rpm): 206~850

Motor(w)/Phase: 370 / 1

G.W / N.W: 70/50kg

Packing Size (cm): 58 x 37 x 90cm
