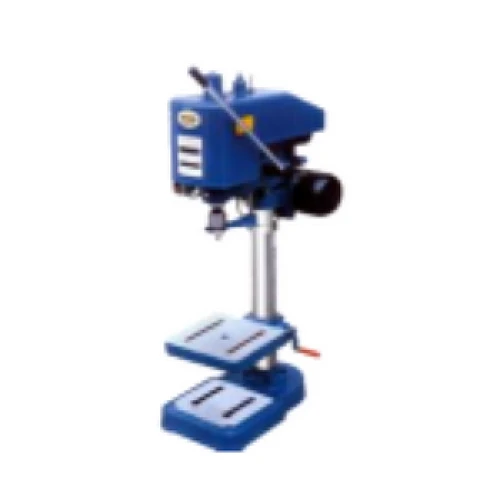

SWJ16 750w 1 Phase Bench Drill Tapping Machine Xest Ling

Please check the stock status before placing an order.

Features

• Simple structure and easy operation.
• It can tapping continuously widely used at all kinds of machinery, instrument, hardware tools and so on.
• It uses machinery friction clutch make which prolong the life of motor working stable and low noise and also has the over loading protection function.
• Standard accessories= Drill chuck

PRODUCT DESCRIPTION

Model: SWJ-16

Max. Tapping Capacity(mm): M16/M12

Dia. of column(mm): 73

Spindle travel(mm): 50

Distance spindle axis to column generating line(mm): 183

Max. Distance spindle nose to workable(mm): 485

Max. Distance spindle nose to base(mm): 660

Spindle taper: B18

Spindle speeds range(rpm): 240~570

Motor(w)/Phase: 750 / 1

G.W / N.W: 120/102kg

Packing Size (cm): 68 x 42 x 128cm
