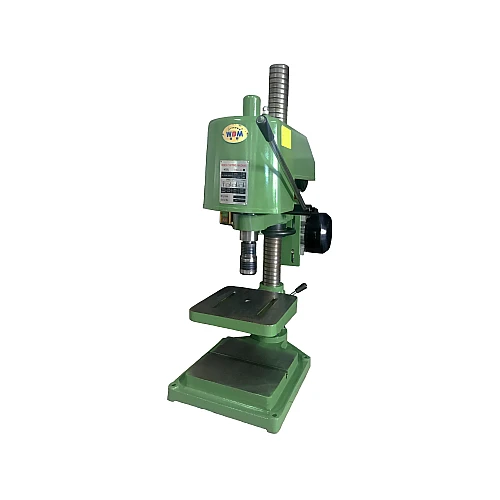

SWJ24 1100w 1 Phase Bench Drill Tapping Machine Xest Ling

Please check the stock status before placing an order.

Features

• Simple structure and easy operation.
• It can tapping continuously widely used at all kinds of machinery, instrument, hardware tools and so on.
• It uses machinery friction clutch make which prolong the life of motor working stable and low noise and also has the over loading protection function.

PRODUCT DESCRIPTION

Model: SWJ-24

Max. Tapping Capacity(mm): M22/M24

Dia. of column(mm): 70

Spindle travel(mm): 50

Distance spindle axis to column generating line(mm): 198

Max. Distance spindle nose to workable(mm): 545

Max. Distance spindle nose to base(mm): 760

Spindle taper: B22

Spindle speeds range(rpm): 180~480

Motor(w)/Phase: 1100 / 1

G.W / N.W: 160/140kg

Packing Size (cm): 78 x 48 x 116cm
