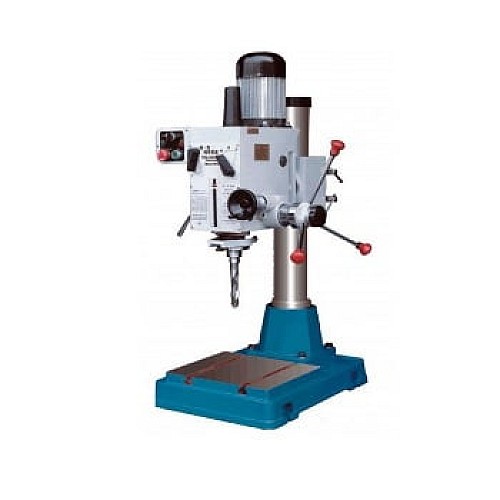

ZS40P 750w 3 Phase Bench Gear Head Drilling Tapping Machine Xest Ling

Please check the stock status before placing an order.

Features

• The machine adopts gear driving and the driving moment is strong.
• The machine has the 6 series speed variable feature, which can be widely fit for processing to kinds of common hard and soft material.
• The head can rotate 360° and can tilt ±45° it reliable and easy job can be done.
• The motor drive by the gear, which overcomes the shortcoming of the belt skid.
• According to the customers’ demand and machine can drill, enlarge, ream and tap the multi-holes by the multi spindles.
• Standard accessories= Drill chuck, tap chuck, taper sleeve, arbor, drift, wrench, drawbar
• Special accessories= Multi-spindles, angle vice.

PRODUCT DESCRIPTION

Model: ZS-40P

Max. Drilling Capacity(mm): CI=40 SS=32

Max. Tapping Capacity(mm): CI=M32 S=M24

Spindle travel(mm): 120

Distance spindle axis to column generating line(mm): 272.5

Max. Distance spindle nose to base(mm): 800

Spindle taper: MT4

Spindle speeds range(rpm): 95~1600

Motor(w)/Phase: 750 / 3

Packing Size (cm): 75 x 73 x 146

G.W / N.W: 310/270kg
