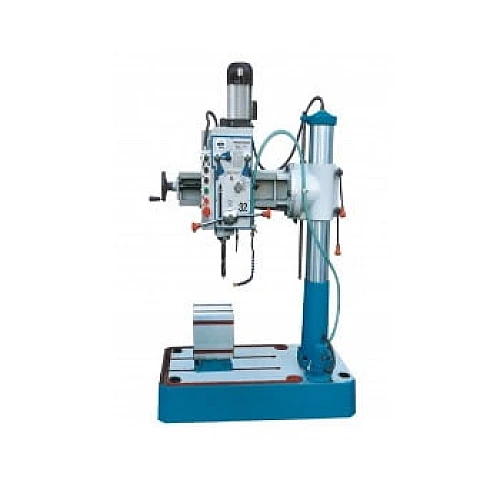

Z3032X7P 750w Bench Radial Drilling Machine Xest Ling

Please check the stock status before placing an order.

Features

• With a wide range of speed, with manual power feeds. The feed of machines is very easily engaged and disengaged at any time.
• The radial arm can be rotated and can tilted 45±°. It reliable and easy job can be done.
• Main parts are made by the machine center which imports for KIA with high precision and efficiency, ensuring reliability and high quality.
• The machine with small appearance and much function, the machine widely used for drilling, counterboring, tapping, etc.
• Standard accessories= Drill chuck φ16mm, box shape worktable, taper sleeve, drift, arbor.
• Special accessories= Stand, angle vice, safety guard.

PRODUCT DESCRIPTION

Model: Z3032X7P

Max. Drilling Capacity(mm): 32

Max. Tapping Capacity(mm): CI=20 S=16

Dia. of column(mm): 150

Spindle travel(mm): 150

Distance spindle axis to column generating line(mm): 300~700

Max. Distance spindle nose to workable(mm): 275~680

Spindle taper: MT3

Spindle speeds range(rpm): 100 ~ 1600

Motor(w)/Phase:  750 / 3

G.W / N.W: 580/500kg

Packing Size (cm): 127 x 69 x 137
