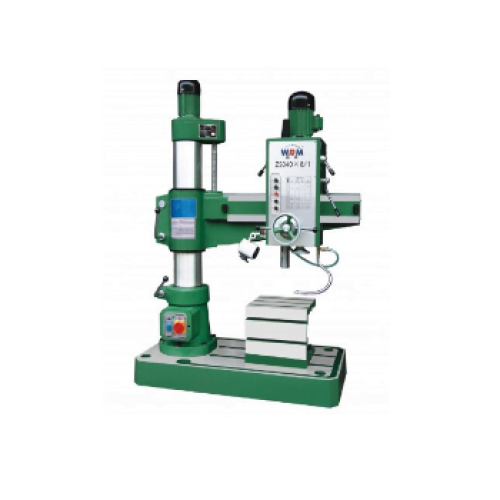

Z3032X81 1500w Bench Radial Drilling Machine Xest Ling

Please check the stock status before placing an order.

Features

• With a safe and reliable feed safety machine, all parts easy operations and change.
• Main parts are made by the machine center which imports for KIA with high precision and efficiency, ensuring reliability and high quality.
• Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
• Spindle parts are made by special high-quality steel heat treatment to be made by first-class equipment, ensuring high strength and durability.
• Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
• The machine with small appearance and much function, the machine widely used for drilling, counterboring, tapping, etc.
• Standard accessories= box shape worktable, taper sleeve, tool releasing wrench drift.
• Special accessories= quick instead chuck, tapping chuck, grease gun.

PRODUCT DESCRIPTION

Model: Z3032X8-1

Max. Drilling Capacity(mm): 32

Dia. of column(mm): 200

Spindle travel(mm): 240

Distance spindle axis to column generating line(mm): 320~820

Max. Distance spindle nose to workable(mm): 320~900

Spindle taper: MT4

Spindle speeds range(rpm): 75 ~ 1220

Motor(w)/Phase: 1500 / 3

G.W / N.W: 1425kg

Packing Size (cm): 155 x 77 x 210
