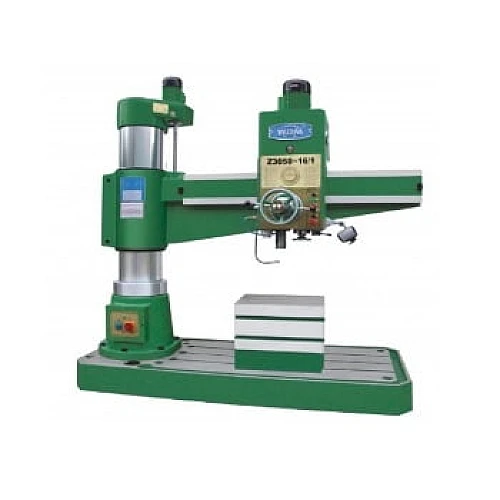

Z3050X161 4000w Bench Radial Drilling Machine Xest Ling

Please check the stock status before placing an order.

Features

• Gather mechanical electrical hydraulic functions, use extensively.
• With a wide range of speed and feed, with manual power and fine feeds. The feed pf machine is very easy engaged and disengaged at any time.
• With a safe and reliable feed safety machine, all parts easy operations and change.
• All controls centralized on the head stock easy operation and changed.
• Main parts are made by the machine center which imports for KIA with high precision and efficiency, ensuring reliability and high quality.
• Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
• Spindle parts are made by special high-quality steel heat treatment to be made by first-class equipment, ensuring high strength and durability.
• Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
• Standard accessories= box shape worktable, taper sleeve, tool releasing wrench. drift, eyelet bolts.
• Special accessories= quick instead chuck, tapping, grease gun.

PRODUCT DESCRIPTION

Model: Z3050X16-1

Max. Drilling Capacity(mm): 50

Dia. of column(mm): 350

Spindle travel(mm): 315

Distance spindle axis to column generating line(mm): 350~1600

Max. Distance spindle nose to workable(mm): 320~1220

Spindle taper: MT5

Spindle speeds range(rpm): 25 ~ 2000

Motor(w)/Phase: 4000 / 3

G.W / N.W: 3900/3500kg

Packing Size (cm): 260 x 112 x 260
