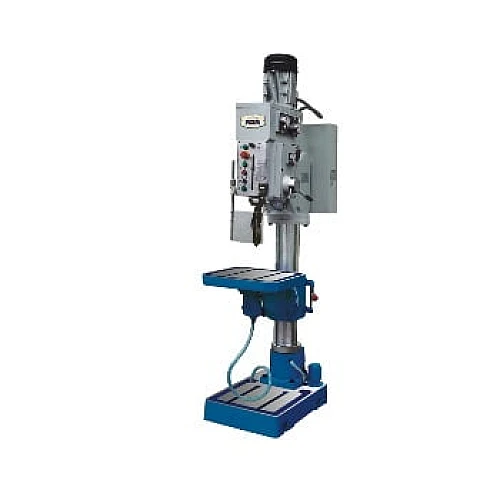

Z5040 40mm 2200w Bench Vertical Drilling Machine Xest Ling

Please check the stock status before placing an order.

Features

• New-designed, pleasing appearance, compact construction, wide speed range.
• Easy operation with its unique workable, and both motor-drive and manual-operated lifting device.
• The working table can be rotated ±180 degrees can also be titled ±45 degrees, it is reliable and easy job can be done.
• Equipped with coolant system and tapping mechanism.
• Equipped with shortcut and overload protection, its electrical system with powerful spindle motor, it designed according to IEC standard.
• Characteristic protection device is safe and reliable.
• Ideal choice for a single piece, small batch, and mass production for drilling, counter boring, reaming, tapping, spot facing etc.

Standard accessories

• Drill chuck   2.Arbor   3.Taper sleeve   4.Drift   5.Wrench

Special accessories

• Angle vise   2.Safety guard

PRODUCT DESCRIPTION

Model: Z5040

Max. Drilling Capacity(mm): 40

Max. Tapping Capacity(mm): CI=32 SS=27

Dia. of column(mm): 160

Spindle travel(mm): 180

Distance spindle axis to column generating line(mm): 360

Max. Distance spindle nose to workable(mm): 460

Max. Distance spindle nose to base(mm): 1200

Spindle taper: MT4

Spindle speeds range(rpm): 42~2050

Motor(w)/Phase: 2200 / 3

G.W / N.W: 750/680kg

Packing Size (cm): 108 x 62 x 245
