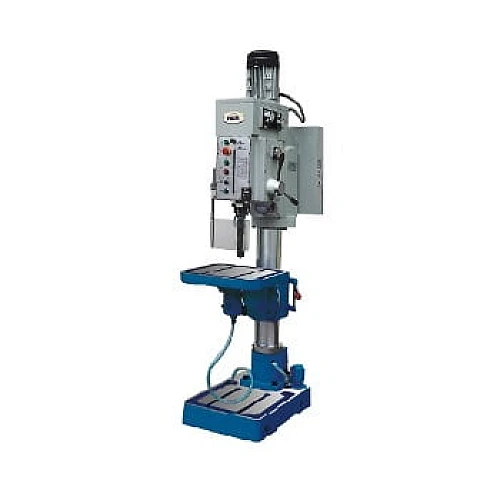

Z5050 50mm 2200w Bench Vertical Drilling Machine Xest Ling

Please check the stock status before placing an order.

PRODUCT DESCRIPTION

Model: Z5050

Max. Drilling Capacity(mm): 50

Max. Tapping Capacity(mm): M30

Dia. of column(mm): 180

Spindle travel(mm): 240

Distance spindle axis to column generating line(mm): 360

Max. Distance spindle nose to workable(mm): 460

Max. Distance spindle nose to base(mm): 1200

Spindle taper: MT6

Spindle speeds range(rpm): 42~2050

Motor(w)/Phase: 2200 / 3

Dimension of Base Table (mm): 450 x 440

Overall Height (mm): 2380

G.W / N.W: 800kg/730kg
