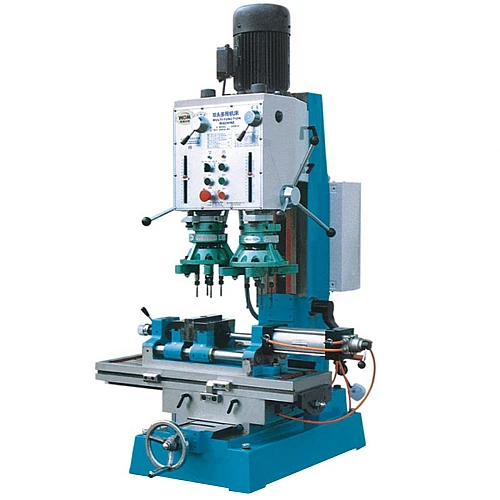

ZXSM45 45mm 2200w Bench Double Spindle Compound Drilling Tapping Machine Xest Ling

Please check the stock status before placing an order.

PRODUCT DESCRIPTION

Model: ZXSM-45

Max. Drilling Capacity(mm): 45

Max. Tapping Capacity(mm): 40

Spindle travel(mm): 100

Distance spindle axis to column generating line(mm): 275

Max. Distance spindle nose to base(mm): 515

Spindle taper: MT3

Spindle speeds range(rpm): D:75~1200

Motor(w)/Phase: 2200 / 3

Dimension of worktable surface (mm): 800 x 240

Overall Height (mm): 1820

G.W / N.W: 550/500kg
