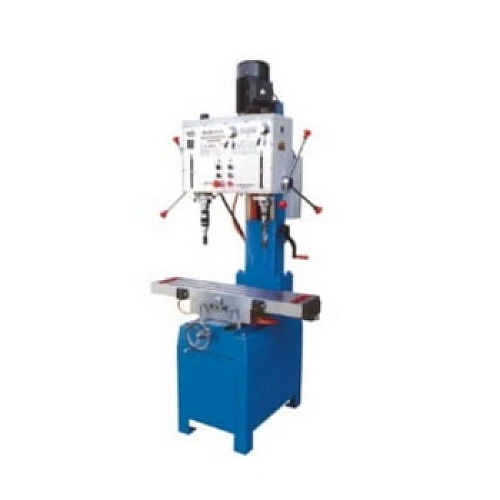

ZXSM45A 2200w Bench Double Spindle Compound Drilling Tapping Machine Xest Ling

Please check the stock status before placing an order.

Features

• The machine can tapping directly after drilling without changing tools, increase the efficiency.
• The machine can drill or tap several holes at one time, not only increase the efficiency, but also ensure different holes distance.
• To obtain different holes distance only need to adjust the distance between the spindles of multi-spindles, no needs to use many jig, and reduce the produce cost.
• The machine can work in with air-jig, fasten it, and the efficiency is very high, not only serve time but also energy.
• The lengthways travel of the table is air pressure auto feeding, save time but also energy and also improve the efficiency.
• It can process multi-holes, it can drill, ream, enlarge and tap the holes of different holes distance is very wide to adjusting the spindle of multi-spindles is very easy, the No. of the spindle can be changed according to the customer’s needs.
• It’s no needs to reinstall the workpiece to tapping after drilling you just have to pull table travel, then the work piece moves to the position of the tapping spindle to tapping.
• The machine can process multi-holes with the multi-spindles according to the customer’s demands or can drill, ream and tap only one hole without multi-spindles.

PRODUCT DESCRIPTION

Model: ZXSM-45A

Max. Drilling Capacity(mm): 45

Max. Tapping Capacity(mm): 40

Spindle travel(mm): 120

Distance spindle axis to column generating line(mm): 275

Max. Distance spindle nose to base(mm): 665

Spindle taper: MT4

Spindle speeds range(rpm): D:75~1200

Motor(w)/Phase: 2200 / 3

Dimension of worktable surface (mm): 1000 x 240

Overall Height (mm): 1970

G.W / N.W: 650/600kg
