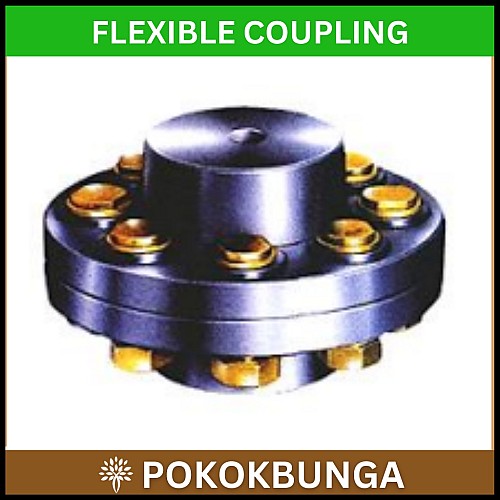

FCL224 224mm Flexible Coupling

Please check the stock status before placing an order.

Flexible Coupling Model FCL is widely used for its compact designing, easy installation, convenient maintenance, small size and light weight. As long as the' relative displacement between shafts is kept within the specified tolerance,the coupling will operate the best function and a longer working life. Thus it is greatly demanded medium and minor power transmission systems  drive by motors, such as speed reducers, hoists, compressors, conveyers, spinning & weaving machines and ball mills.

Permittable relative displacement:

Radial displacement: 0.2 ~ 0.6 mm

Angle displacement : 0 30° ~ 1 30°

PRODUCT DESCRIPTION

Model: FCL 224

Speed (rpm): 2850

n-M: 8-M20 x 85

Dimension (mm): 80x112x224

Weight (kg): 21.3
