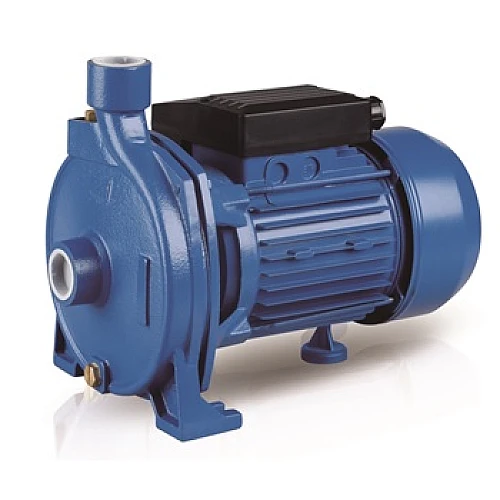

CMT150 1.5Hp Centrifugal Pump CMT Series Stream

Please check the stock status before placing an order.

Features

• High-efficient.
• Power-saving and compact in structure.
• Convenient to operate and maintain.
• The hydraulic characteristic is with high head and small capacity.

Construction Features

• Pump Body: cast iron
• Motor Housing: aluminum
• Shaft: 45# steel / Stainless Steel
• Impeller: brass noryl
• Motor: closed, externally ventilated
• Insulation Class: B/F protection
• Protection Class: IP44/IP54
• Duty: continuously rated
• Mechanical Seal: ceramic metalized carbon

Operating Limitations

• Max ambient temperature up to 40°C
• Max fluid temperature up to 80°C
• Max pressure up to 10 bar

PRODUCT DESCRIPTION

Model: CMT150/00

Size: 1" x 1"

Power: 1.5hp / 3Φ

Q (L/min): 20 ~ 105

H (M): 37 ~ 26
