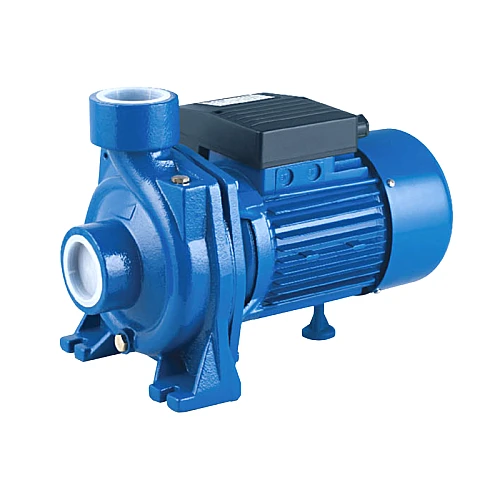

CS1502 1.5Hp With High Flow CS Series Centrifugal Pump

Please check the stock status before placing an order.

Limits of Use

• Max. Ambient temperature up to 40°C.
• Max. Fluid temperature up to 80°C.
• Max. Pressure up to 10 bar.

Construction Features

Pump Body: Cast Iron

Motor Housing: Aluminium

Shaft: 45# Steel / Stainless Steel

Impeller: Brass Noryl

Motor: Closed, Externally ventilated

Insulation Class: B/F Protection

Class : IP44 / IP54

Duty: Continuously rated

Mechanical Seal: Ceramic metalized Carbon

PRODUCT DESCRIPTION

Model: CS150/2

Size: 2" x 2"

Power: 1.5hp / 1Φ

Q (L/min): 100 ~ 580

H (m): 13 ~ 9
