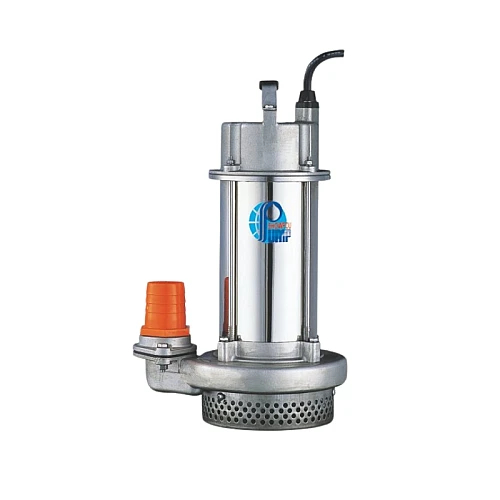

SQ132N 1Hp 415V Stainless Sump Pump Showfou

Please check the stock status before placing an order.

Features

• Motor: Quality motor with a level of protection IP68, suitable for continuous duty.
• Thermal Protector: Single phase model with built-in thermal protector prevents any burning damage to the motor.
• Motor Casing: Stainless steel sheet housing, greatly reduces the pump’s weight and is easy to carry for the work.
• Pump Casing: Rugged SCS13 (#304) stainless investment casting with a smooth surface finish.
• Impeller: Statically and dynamically balanced, semi-open type impeller design, prevents clogging by mud, sand, etc.
• Suction Cover: Easily replaceable.
• Triplex seal system for less downtime and longer life: Oil-lubricated Double Mechanical Seals (highly wear-resistant SiC/SiC with Viton) and separate Viton Oil Seal.
• The whole unit is equipped with Viton O-ring.

Applications

• Dewatering containing acidic fluid.
• Dyeing industry.
• Mariculture.
• Chemical plating.
• Irrigation and other general corrosive media.

PRODUCT DESCRIPTION

Stainless Sump Pump (ALL STAINLESS STEEL) Showfou

Model: SQ-132N

Power: 1hp

Voltage: 415V

Discharge: 3″

Max Head(m): 10

Max Flow(m3/min): 0.71

Solid Passage(mm): Φ6
