KHQ232N 2Hp 415V Stainless Sump Pump Water Cooling Design Showfou

Please check the stock status before placing an order.

Features

• Top discharge for easy piping on-site, and water cooling design can remove the water to a much lower level.
• The water-cooling design for longer servicing life.
• Pump Casing: Rugged SCS13 (#304) stainless investment casting with a smooth surface finish.
• Impeller: Statically and dynamically balanced, semi-open type impeller design, prevents clogging by mud, sand, etc.
• Suction Cover: Easily replaceable.
• Oil-lubricated Double Mechanical Seals (highly wear-resistant SiC/SiC with Viton) together with a separate Viton Oil Seal.
• The whole unit is equipped with Viton O-ring.
• The Motor Casing and outer casing adopt stainless steel sheet material, greatly reduce the pump’s weight, and are easy to carry for the work.
• Quality IP68 motor with water cooling design, very suitable for continuous duty.
• Single-phase model with built-in thermal protector in motor, preventing any burning damage to the motor.

Applications

• Dewatering contains acidic fluid.
• Dyeing industry.
• Mariculture.
• Chemical plating.
• Irrigation and other general corrosive media.

PRODUCT DESCRIPTION

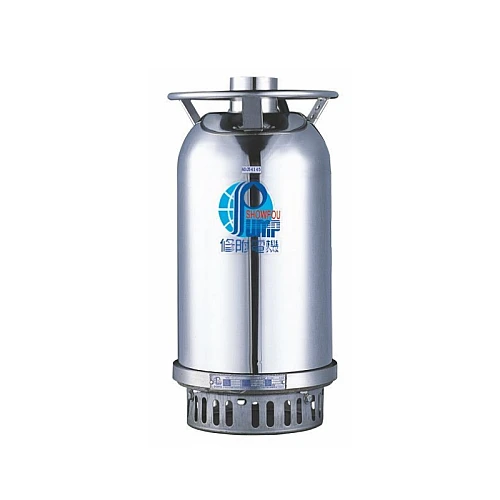

Stainless Sump Pump (Water Cooling Design) Showfou

Model: KHQ-232N

Power: 2hp

Voltage: 240V

Discharge: 2″

Max Head(m): 20

Max Flow(m3/min): 0.41

Solid Passage(mm): 34x10
