CVQ0512 0.5Hp 240V Stainless Steel Booster Pump Chemical Stainless Pump Showfou

Please check the stock status before placing an order.

Features

• Extra long-life design: the pump body and all related parts are made of casting stainless SCS 13(#304).
• Good capability of anti-acid & alkali, and also suitable for seawater use.
• The Whole unit is equipped with Viton O-Ring.
• Little vibration and noise.
• The Viton O-Ring is used between pump bracket and pump casing to give better pump life in corrosive and aggressive media.
• All models are equipped with Silicon Carbide with Teflon/Viton mechanical seal.
• The SCS14/SUS316 material: CVQ-K Series Cast Stainless Steel Centrifugal Pumps is also available.

Applications

• Chemical processing, heavy-chemistry, oil refining, dyeing, bleaching, metal treatment, and electro-plating.
• Food, fishery, drinks, breweries, pulp, fiber,  wineries, tanneries, meat packing, cosmetics, and medicines.
• Plant for preventing pollution, wastewater, white water, sewage, and drainage treatment.

PRODUCT DESCRIPTION

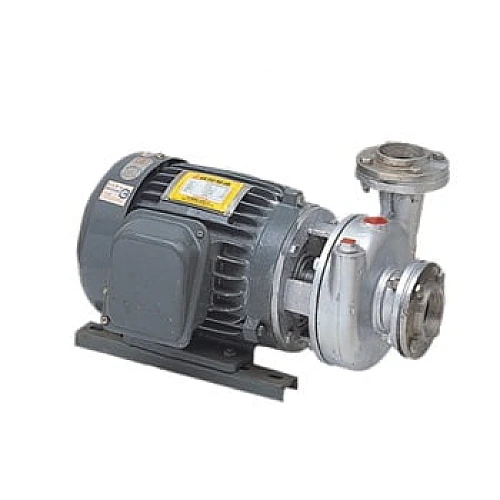

Stainless Steel Booster Pump (Chemical Stainless Pump) Showfou

Model: CVQ-0512

Power: 0.5hp

Voltage: 240V

Discharge: 1"

Max Head(m): 14

Max Flow(m3/min): 0.11

Solid Passage(mm): 13.5
