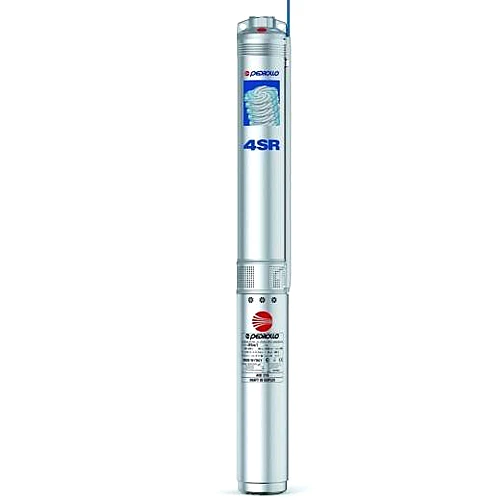

4SR435P 3Kw 3 Phase Submersible Pump Sand Resistant Pedrollo

Please check the stock status before placing an order.

Applications Limit

• Liquid temperature up to +35 ° C
• Maximum sand content 150 g / m³
• Depth of use up to 100 m below the water level

      Operation

            a) vertically

            b) horizontally with the following limits:

            4SR1 – 4SR1.5 – 4SR2 – 4SR4 up to 27 stages

            4SR6 – 4SR8 – 4SR10 – 4SR12 – 4SR15 up to 17 stage

• Starts/hour: 20 at regular intervals
• Minimum engine cooling flow 8 cm / s
• Continuous service S1

PRODUCT DESCRIPTION

Pedrollo Submerged Pump (Sand-resistant) (Bore hole submersible pump 4")

Model: 4SR4/35-P

Size/Discharge: 1-¼"

Power KW/Phase: 3 / 3

Flow (L/min): 20 ~ 100

Head (m): 220 ~ 85

Weight: 25kg

*Evolution sand-resistant max 150 g/m³

*Old Model
