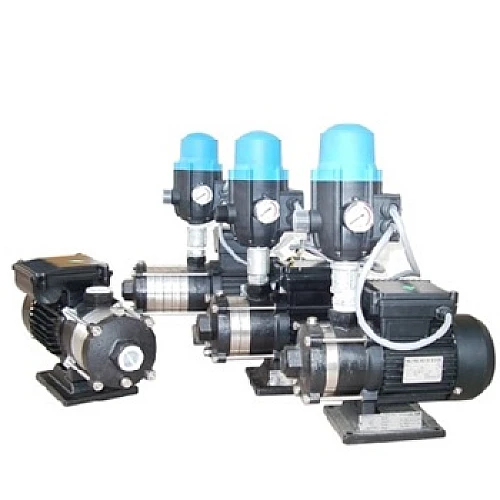

HS260 0.75Kw Multi Stage Pump Horizontal HS Series Unoflow

Please check the stock status before placing an order.

Applications

HS series are mini horizontal centrifugal pumps, that have a wide application in domestic water supply industry and constructions. They are used for:

• Air-conditioning system
• Cooling system
• Industrial cleaning conveyance and circulation of liquid.
• Water treatment (Water purification)
• Domestic water supply
• Boosting environment
• Many other special using.

Working Conditions

• Diluted, clean, non-flammable, and non-explosive
• liquid without solid grain or fibers ;
• Liquid temperature :

             -low temperature: -20 ~ +15 ;

             -standard model:+15 ~70 ;

             -high temperature:+70 ~104 .;

• Max. environmental temperature: 50
• Max. operating pressure: 10 bar
• Max. suction pressure is limited by max.
• Operating pressure

PRODUCT DESCRIPTION

Unoflow Multistage Pump Horizontal HS Series

Model: HS2-60

Size: 1"x1"

Power/Phase: 0.75kw/1

Flow Rate: 16 ~ 58 L/min

Head: 50 ~ 25 meters

Weight: 10.5kg
