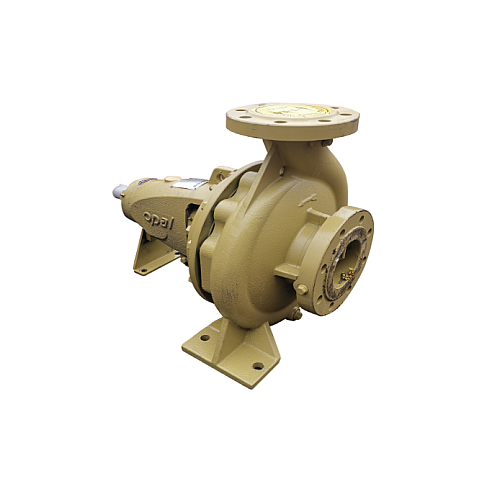

3213 0.5Hp 1450rpm End Suction Centrifugal Pump Opal Flo

Please check the stock status before placing an order.

Features

• It is an end-suction centrifugal water pump. It can be assembled either with electric motor or diesel engine.
• The design allows the complete rotating element to be removed for servicing without disconnecting pipework.
• On re-assembly of pump coupling re-alignment problems are completely eliminated.
• Heavy duty shaft and statically balance impeller benefits.

Materials of Construction

Casing: Cast iron

Impeller: Bronze

Wear Ring: Cast iron

Shaft: Stainless steel

Shaft Nut: Stainless steel

Shaft Sleeve: Stainless steel

Lantern Ring: Cast iron

Gland: Cast iron

PRODUCT DESCRIPTION

Opal Flo Centrifugal Pump - End Suction Pump

Model: 32/13

Size Discharge (Inlet x Outlet): 2" x 1-¼"

1450rpm -Igpm/Ft/Hp: 33/16/0.5

2900rpm -Igpm/Ft/Hp: 70/66/3

Bearing Housing: 25

Weight: 28kg
