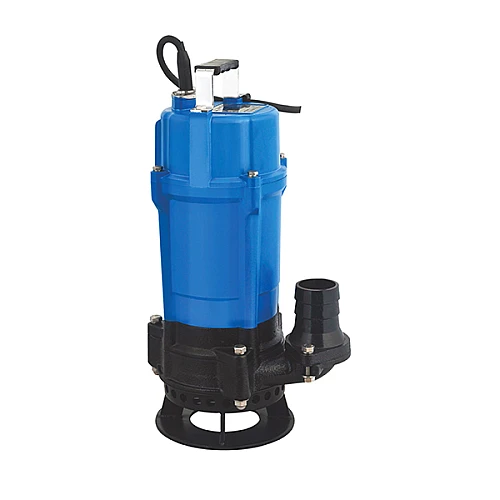

FDM255F 0.75Hp FDM Submersible Slurry Pump Meudy

Please check the stock status before placing an order.

Structure and characteristics

• High effective motor competent to pump highly laden mud water.
• The impeller and agitator made of high chrome alloy ensure great durability.
• Semi Vortex impeller design reduces the clogging situation by sand.

Applications

• Water temperature: up to 40°C.
• PH: 6.5 to 8.5
• Power supply: single-phase 220V ±10%, 50Hz
• Insulation class: F
• Protection class: IP68
• Maximum immersion depth: 10m
• Cable length: 8m

PRODUCT DESCRIPTION

Model: FDM2.55 (F)

Outlet (mm): 50

Motor power (kw): 0.55

Motor power (hp): 0.75

Max head (m): 13

Max capacity: 13m³/h ,0.22m³/min

Impeller Passage: 9

N.Weight: 15.5kg

G.Weight: 16.5kg

Packing dimension (mm): 455x255x230

*(F) float switch
