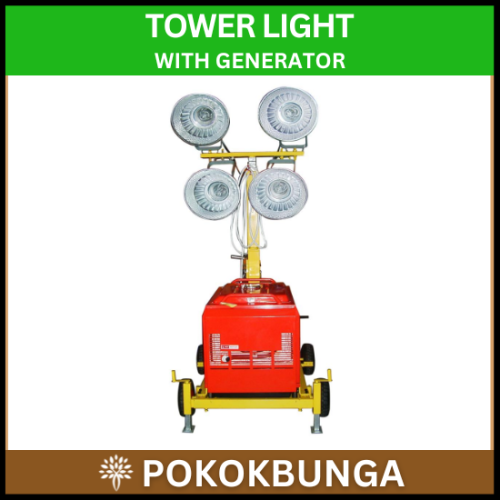

Tower Light 400w With Generator

There are no questions.

Please check the stock status before placing an order.

PRODUCT DESCRIPTION

Model		Tower Light
Each lamp power		400WATT
Weight		± 118kg
Maximum Height		5.0m
Minimum Height		1.9m
Lifted(LxWxH)		1497x965x4267
Standard(LxWxH)		1497x965x2337
Generator Model		5GF-LDE
ALTERNATOR	Alternator type	Synchronous alternator
	Frequency / Voltage	50 Hz / 240V
	Rated AC output	4.4kva
	Max. AC output	4.8kva
	Rated current	–
	DC output	12V x 8.3A
	Power factor	1
	Excitation system	Self-excitation
ENGINE	Model	BM186(FGE)
	Type	Single-cylinder, Vertical, 4-stroke, Air-cooled, Direct-injection diesel.
	Displacement	406 cc
	Bore x stroke	86x70mm
	Speed	3000rpm
	Continuous output	7.7hp
	Max. output	8.8hp
	Starting system	Recoil / Electric starter
	Cooling system	Forced air
	Governor system	Centrifugal weight system
	Fuel	Diesel
	Fuel tank capacity	16.5 L
	Lub oil capacity	–
	Continuous working time	8.5 hours
	Noise level (at 4mts)	88 dB(A)
UNIT	Frame – Type / Material	Monoblock. 2 support / Steel
	Dimension(mm)	880x565x795
	Dry weight	167Kg

The caution for the use

1) Reopen the spotlight after turning off the spotlight 20 minute later, don’t plug it to until the bulb is cooled down.

2) Only start and stop the generator after turning off the spotlight.

3) Don’t use the generator in the rain. Otherwise, there is an electric shock. If necessary, you should check and service your generator after you cut-off electric circuit.

4) Reduce the spotlight height when the wind speed is over 10m per second.

5) Avoid putting the generator on the slope(above 5m). Otherwise, the generator will be tipped or sides, causing an accident.

6) Keep the generator stable after stop. In addition, fix the generator if necessary.
