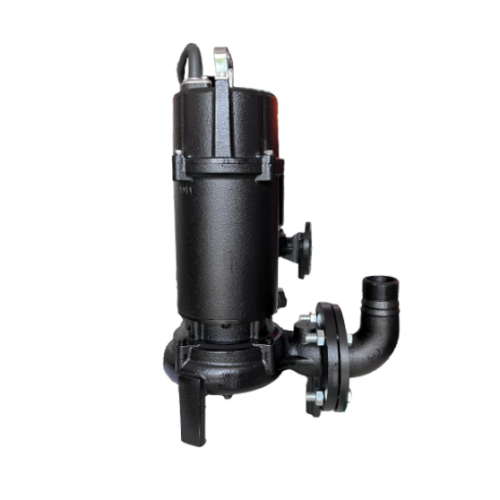

80Z222 3Hp 415V Submersible Sewage Pump Z Series Meudy

Please check the stock status before placing an order.

For Model: 50Z / 80Z (with cutter inside)

Insulation Class: B

Protection Class: IP68

Water Temperature: up to 40°C

PH: 6 to 10

Density of Liquid: 1.3g/cm³

Capacity: up to 76 mᶟh

Head: up to 31m

Maximum Immersion Depth: 10m

Cable Length: 8m

PRODUCT DESCRIPTION

Meudy Z Series Sewage Pump

Model: 80Z22.2

Motor power (HP): 3

Voltage (V): 415

Outlet (inch/mm): 3/80

Max capacity (m³/h): 57

Max head (m): 22

RPM: 2850

N.Weight: 45kg

G.Weight: 51kg

Packing Dimension (mm): 690x270x325
