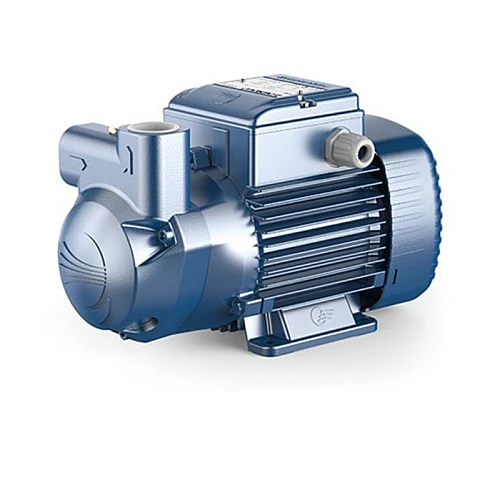

CKM80E 0.55Kw 1 Phase Self Priming Liquid Ring Pumps Pedrollo

Please check the stock status before placing an order.

Application Limit

• Manometric suction lift up to 9 m (HS)
• Temperature of the liquid from -10 °C to +90 °C
• Ambient Temperature to +40 °C
• Max. working pressure 6 bar
• Temperature of diesel up to +55 °C
• Continuous service S1

Installation And Use

• Suitable for use with diesel, clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
• Because of a specific principle of their operating performance these pumps are an excellent solution in every case where a compact self-priming pump is required or when the fluid flow is irregular or contains air.
• Installation needs to be undertaken in well ventilated closed areas or anyway protected from bad weather.

PRODUCT DESCRIPTION

Pedrollo Self-Priming Liquid Ring Pumps

Model: CKm80-E

Size: 1" x 1"

Power (KW/Phase): 0.55/1

Flow (L/min): 5 ~ 50

Head (Meter): 46 ~ 10

Weight: 10.8kg
