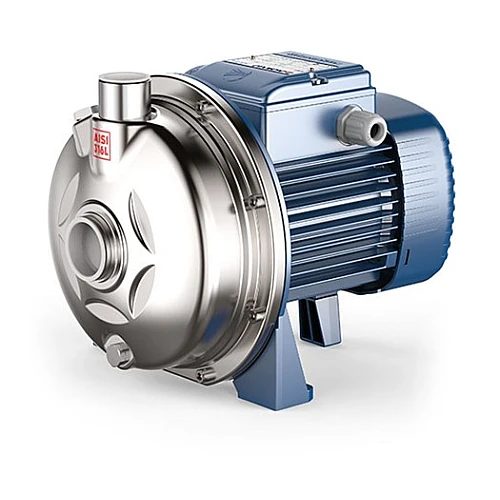

CP158ST4 0.75Kw 3 Phase Stainless Steel Centrifugal Pump Pedrollo

Please check the stock status before placing an order.

Application limits

• Temperature of the liquid from -10 °C to +90 °C
• Ambient Temperature to +40 °C
• Manometric suction lift up to 7 m

Max. Working Pressure

• a) 6 bar for CP 100-130-132-150-158 ST4, CP 100-130-132-150-158 ST6
• b) 8 bar for CP 170-170M ST4, CP 170-170M ST6, CP 180-190-200 ST4, CP 180-190-200 ST6
• *Continuous service S1

Installation And Use

• Suitable for use with clean water and with liquids that are not chemically aggressive towards the materials from which the pump is made. Because of its design features these centrifugal pumps are recommended for use in domestic, agricultural and industrial applications. All the components in contact with the pumped liquid are in stainless steel AISI 304 or AISI 316L thus guaranteeing complete hygiene and maximum resistance against corrosion.
• The pump should be installed in an enclosed environment or sheltered from inclement weather.

PRODUCT DESCRIPTION

Model: CP158-ST4 (Three Phase)

Size: 1-¼” x 1″

Power (kw/phase): 0.75/3

Flow (L/min): 10 ~ 120

Head (Meter): 35.5 ~ 19
