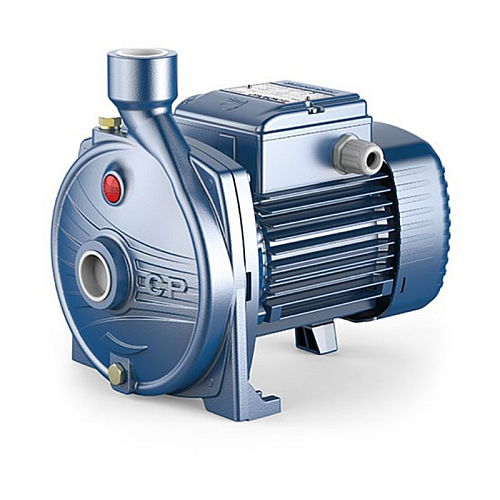

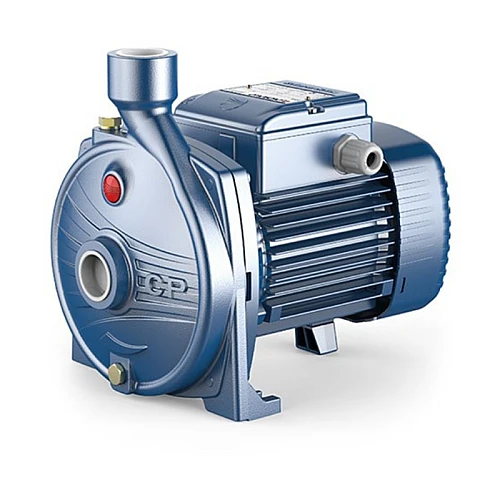

CP200 2.2Kw 3 Phase Centrifugal Pump Pedrollo

Please check the stock status before placing an order.

Application Limit

• Temperature of the liquid from -10 °C to +90 °C
• Ambient Temperature to +40 °C
• Manometric suction lift up to 7 m

Max. Working Pressure:

• 6 bar for CP 100-130-132-150-158
• 10 bar for CP 170-190-200
• *Continuous service S1

Installation And Use

• Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
• As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

PRODUCT DESCRIPTION

Model: CP200 (Three-phase)

Size: 1-¼” x 1″

Power (KW/Phase): 2.2/3

Flow (L/min): 30 ~ 150

Head (Meter): 55 ~ 36

Weight: 24.2kg
