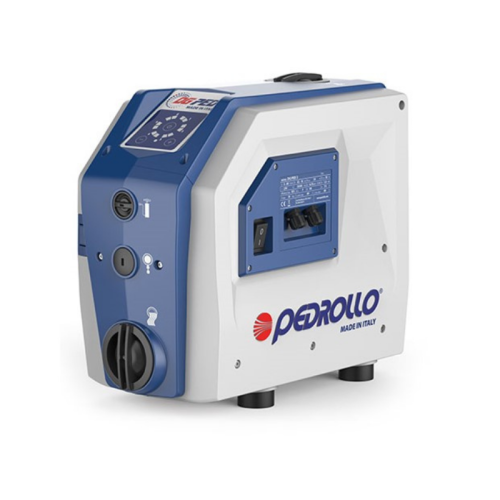

DGPED3 0.75Kw 1 Phase Automatic Pressurisation System and Inverter Pedrollo

Please check the stock status before placing an order.

DG PED is an automatic pressurisation system with inverter which integrates, a high efficiency self-priming pump, an expansion vessel, pressure and flow rate sensors, and a non-return valve.

DG PED is a compact, autonomous, quiet and high performance pumping system.

Technical Data

• Supply voltage ~ 230 V ± 10%
• Frequency 50/60 Hz
• Insulation: class F
• Max absorbed current: 7.5 A DG PED 3 – 10 A DG PED 5
• P1 Maximum absorbed power: 1.0 kW DG PED 3 – 1.5 kW DG PED 5
• Protection IP X4
• Factory set point 3 bar

Application Limits

• Manometric suction lift up to 8 m
• Liquid temperature between 0 °C and +40 °C
• Ambient temperature between 0 °C and +40 °C
• Max. working pressure 10 bar
• Continuous service S1
• Operates in a vertical position

PRODUCT DESCRIPTION

Pedrollo Automatic Pressurisation System with Inverter

Model: DG PED 3

Size: 1" x 1"

Power (KW/Phase): 0.75/1

Flow (L/min): 5 ~ 80

Head (Meter): 55 ~ 10

Weight: 12kg
