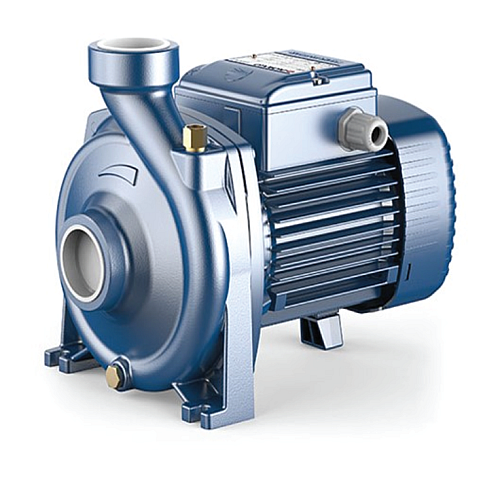

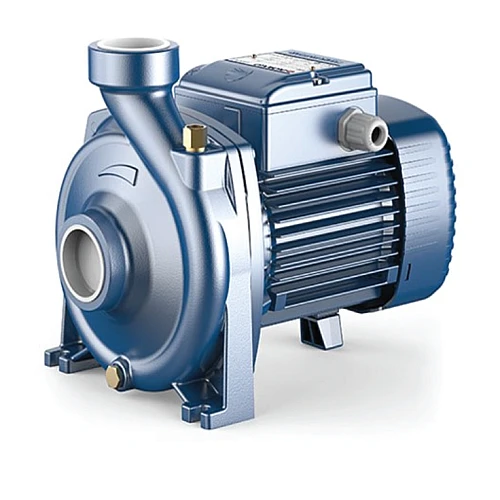

HF51A 0.75Kw 3 Phase With Medium Flow Rates Centrifugal Pump Pedrollo

Please check the stock status before placing an order.

Application Limit

• Temperature of the liquid from -10 °C to +90 °C
• Ambient Temperature to +40 °C
• Manometric suction lift up to 7 m

Max. Working Pressure

• 6 bar for HF 5-50-51
• 10 bar for HF 5M-70
• *Continuous service S1

Installation And Use

• Suitable for use in civil and agricultural applications. The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

PRODUCT DESCRIPTION

Centrifugal Pump with High Flow Rates Pedrollo

Model: HF51A Three phase

Port Size: 1-½" x 1-½"

Power KW/Phase: 0.75 / 3

Flow: 50~300 l/min

Head(m): 20.2 ~ 8.4

Weight: 13kg
