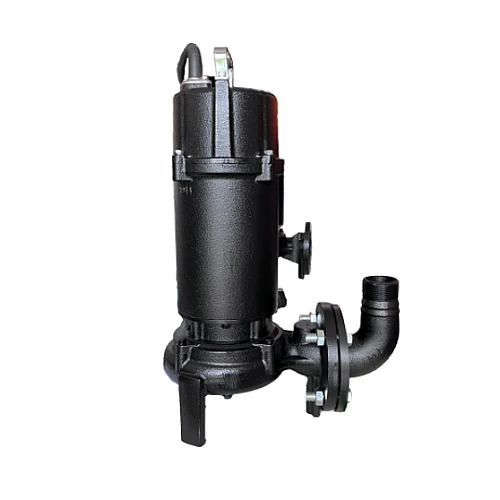

50Z230 4Hp 415V Submersible Sewage Pump Z Series Meudy

Please check the stock status before placing an order.

For Model: 50Z / 80Z (with cutter inside)

Insulation Class: B

Protection Class: IP68

Water Temperature: up to 40°C

PH: 6 to 10

Density of Liquid: 1.3g/cm³

Capacity: up to 76 mᶟh

Head: up to 31m

Maximum Immersion Depth: 10m

Cable Length: 8m

PRODUCT DESCRIPTION

Meudy Z Series Sewage Pump

Model: 50Z23.0

Motor power (HP): 4

Voltage (V): 415

Outlet (inch/mm): 2/50

Max capacity (m³/h): 48

Max head (m): 29

RPM: 2850

N.Weight: 47kg

G.Weight: 53kg

Packing Dimension (mm): 720x270x325

*New Model
