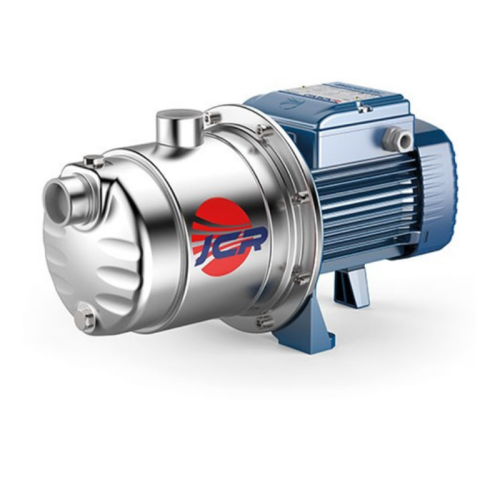

JCRM2C 0.75Kw 1 Phase Jet Self Priming Pump Pedrollo

Please check the stock status before placing an order.

Application Limit

• Temperature of the liquid from -10 °C to +40 °C
• Ambient Temperature to +40 °C
• Manometric suction lift up to 9 m (HS)
• Max. working pressure 6 bar
• Continuous service S1

Installation And Use

• Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
• The self-priming JCR pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

PRODUCT DESCRIPTION

Pedrollo "JET" Self-Priming Pump (Stainless Steel Pump Body)

Model: JCRm2C (JCRm10M)

Size: 1" x 1"

Power (kw/Phase): 0.75/1

Flow (L/min): 5 ~ 70

Head (Meter): 47 ~ 19

Weight: 10.2kg
