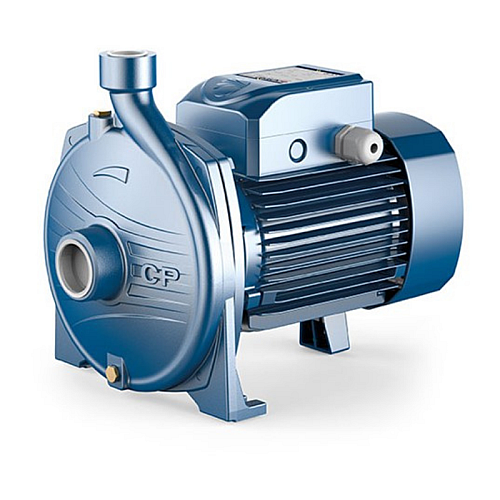

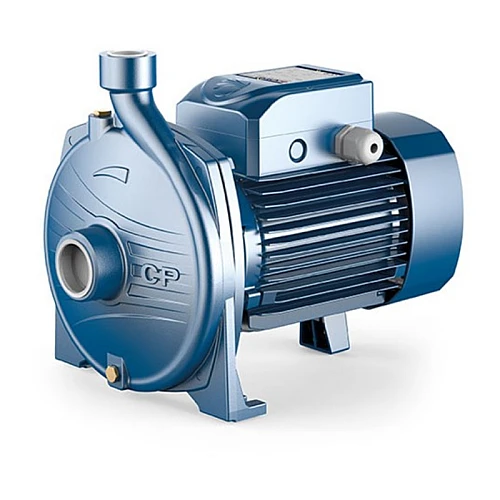

NGA1A 0.75Kw 3 Phase Centrifugal Pump With Open Impeller Pedrollo

Please check the stock status before placing an order.

Application Limits

• Manometric suction lift up to 7 m
• Liquid temperature between -10 °C and +90 °C
• Ambient temperature between -10 °C and +40 °C
• Max. working pressure 6 bar
• Passage of suspended solids up to Ø 10 mm
• Continuous service S1

Installation And Use

• Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made.
• The open impeller design allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging. As a result of these characteristics the NGA series pumps are used specifically in industry and for transferring water from canals, rivers, reservoirs, tanks, etc.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

PRODUCT DESCRIPTION

Model: NGA1A

Size: 1-½" x 1-½"

Power (kw/Phase): 0.75/3

Flow (L/min): 50 ~ 350

Head (Meter): 19.5 ~ 6

Weight: 12.7kg

*For handling water with impurities
