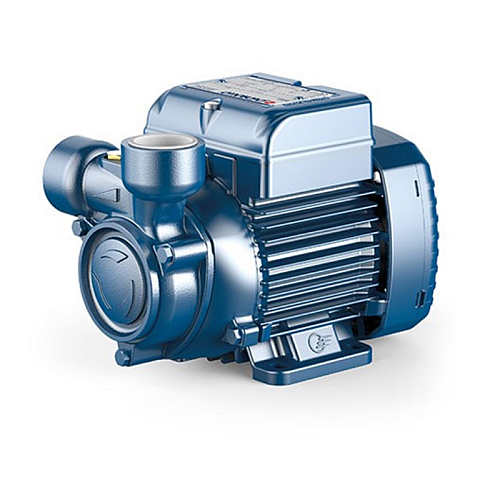

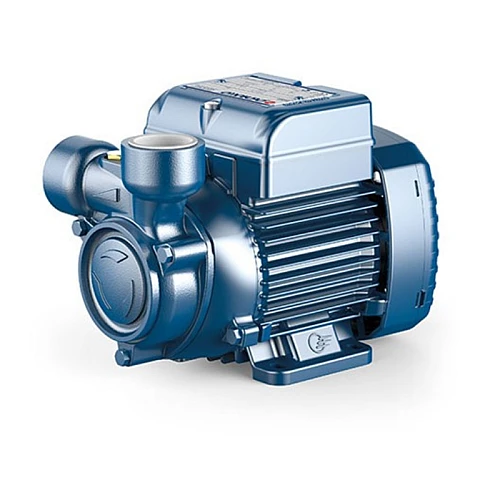

PQM60 0.37Kw 1 Phase Peripheral Pump With Peripheral Impeller Pedrollo

Please check the stock status before placing an order.

Application limits

• Temperature of the liquid from -10 °C to +90 °C
• Ambient temperature between -10 °C and +40 °C (+50 °C for PQ 60)
• Manometric suction lift up to 8 m
• Max. working pressure:
• 6 bar for PQ 60, PQ 65
• 7 bar for PQ 70, PQ 80
• 10 bar for PQ 90, PQ 100, PQ 200, PQ 300
• *Continuous service S1

Installation And Use

• The hydraulic characteristics of these pumps, coupled with their compactness, makes them suitable for use in both domestic and industrial applications. Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

PRODUCT DESCRIPTION

Model: PQM60 (Single Phase)

Size: 1″ x 1″

Power (kw/phase): 0.37/1

Flow (L/min): 5 ~ 40

Head (Meter): 38 ~ 5
