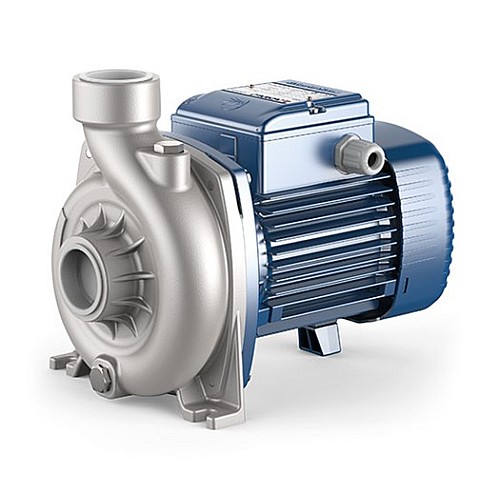

PRONGA1B 0.55kW 3 Phase Stainless Pump 316 With Open Impeller Pedrollo

Please check the stock status before placing an order.

Application Limits

• Manometric suction lift up to 7m
• Liquid temperature between -10°C and +90°C
• Ambient temperature between -10°C and +40°C
• Max. working pressure 6 bar
• Passage of suspended solids up to 10mm
• Continuous service S1

Installation And Use

• Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made.
• The open impeller design allows liquids containing relatively high levels of impurities to be pumped without the risk of impeller clogging. All of the components in contact with the pumped liquid are constructed in stainless steel AISI 316. As a result of these characteristics, the PRO-NGA series pumps find specific use in assemblies for washing fruit, vegetables, fish, and shellfish, in industrial assemblies for washing metallic objects and glass containers, as well as for the circulation of cooling liquids.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

PRODUCT DESCRIPTION

Model: PRO-NGA1B

Size: 1-½" x 1-½"

Power (kW/Phase): 0.55/3

Flow (L/min): 50 ~ 350

Head (Meter): 17.4 ~ 5

Weight: 13.1kg

*Stainless steel pump body and impeller
