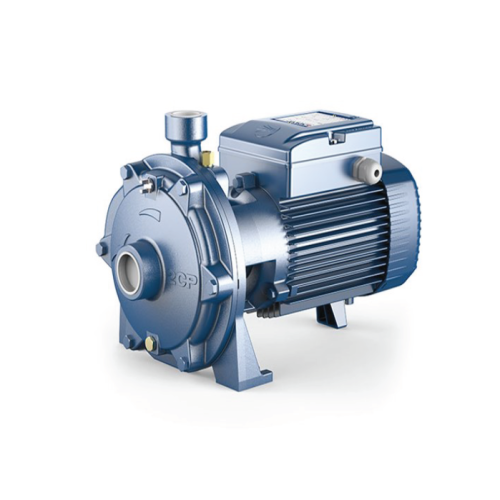

2CPM2514B 1.1Kw 1 Phase Twin Impeller Centrifugal Pump Pedrollo

Please check the stock status before placing an order.

Application Limit

• Temperature of the liquid from -10 °C to +90 °C
• Ambient Temperature da -10 °C to +40 °C
• Manometric suction lift up to 7 m
• Max. working pressure 10 bar (6 bar for 2CP25/130)
• Continuous service S1

Installation And Use

• Suitable for use with clean water and with liquids that are not chemically aggressive towards the materials from which the pump is made.
• The high performance and adaptability to a wide range of applications make them the ideal choice in domestic, civil and industrial applications, in particular for the distribution of water in combination with pressure tanks for boosting pressure in the network and for firefighting sets.
• Installation needs to be undertaken in well ventilated closed areas or anyway protected from bad weather.
• These pumps distinguish themselves for their reliability, which can be best appreciated under automatic operating conditions in fixed installations.

PRODUCT DESCRIPTION

Twin-Impeller Centrifugal Pump Pedrollo

Model: 2CPm25/14B (2CPm25/140H)

Size: 1-¼" x 1"

Power (kw/Phase): 1.1/1

Flow (L/min): 20 ~ 100

Head (Meter): 52 ~ 22

Weight: 19.7kg
